Field Fence — Hinge Joint & Ring Lock
High-tensile, hot-dipped galvanized field fence in two knot types — Hinge Joint for flexible rural runs and Ring Lock for high-pressure stock & exclusion fencing. Built for Australia & New Zealand.
Two Knot Types
Choose the Right Knot for Your Fence Line
Both are high-tensile, hot-dip galvanised field fence — the difference is in how the horizontal and vertical wires lock together.

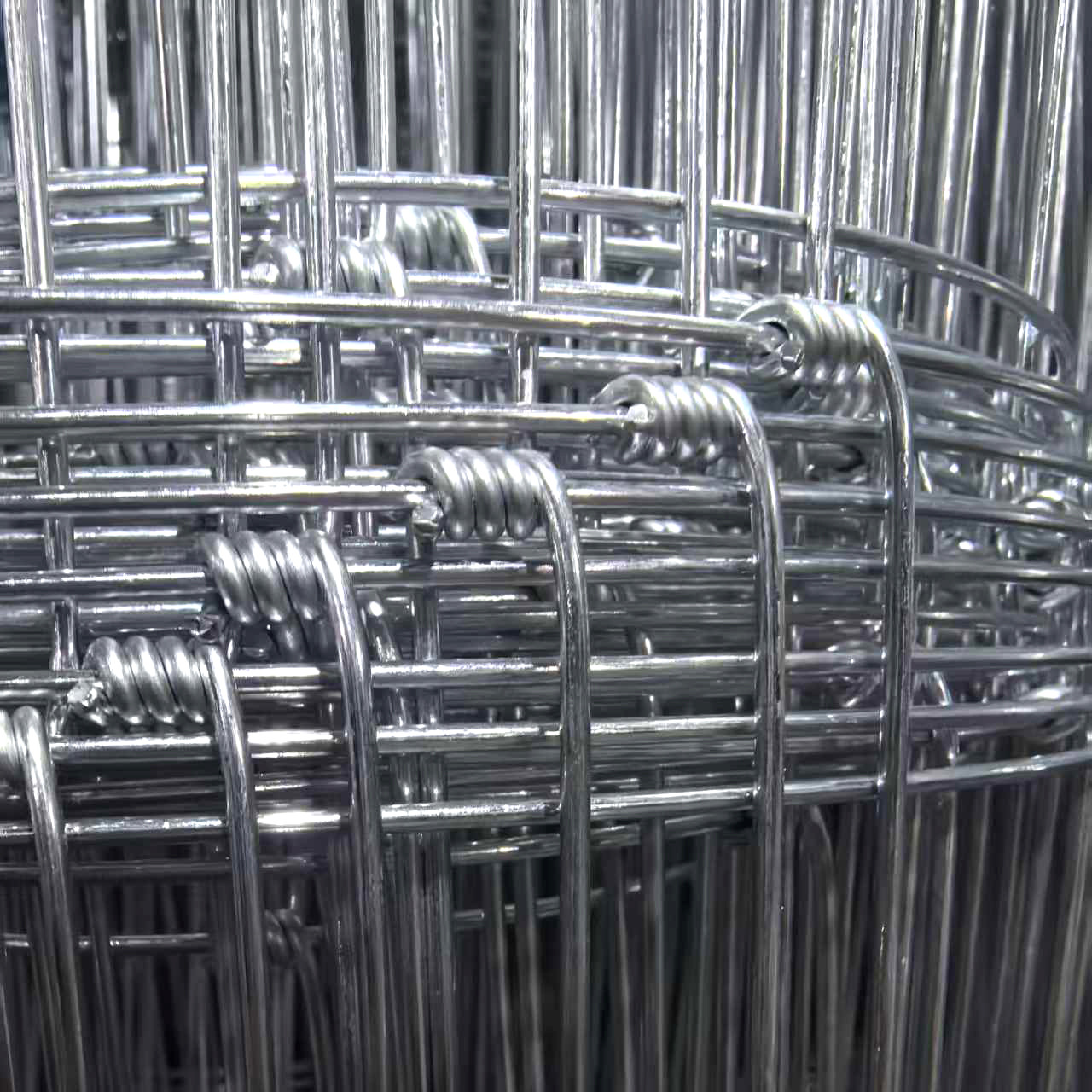

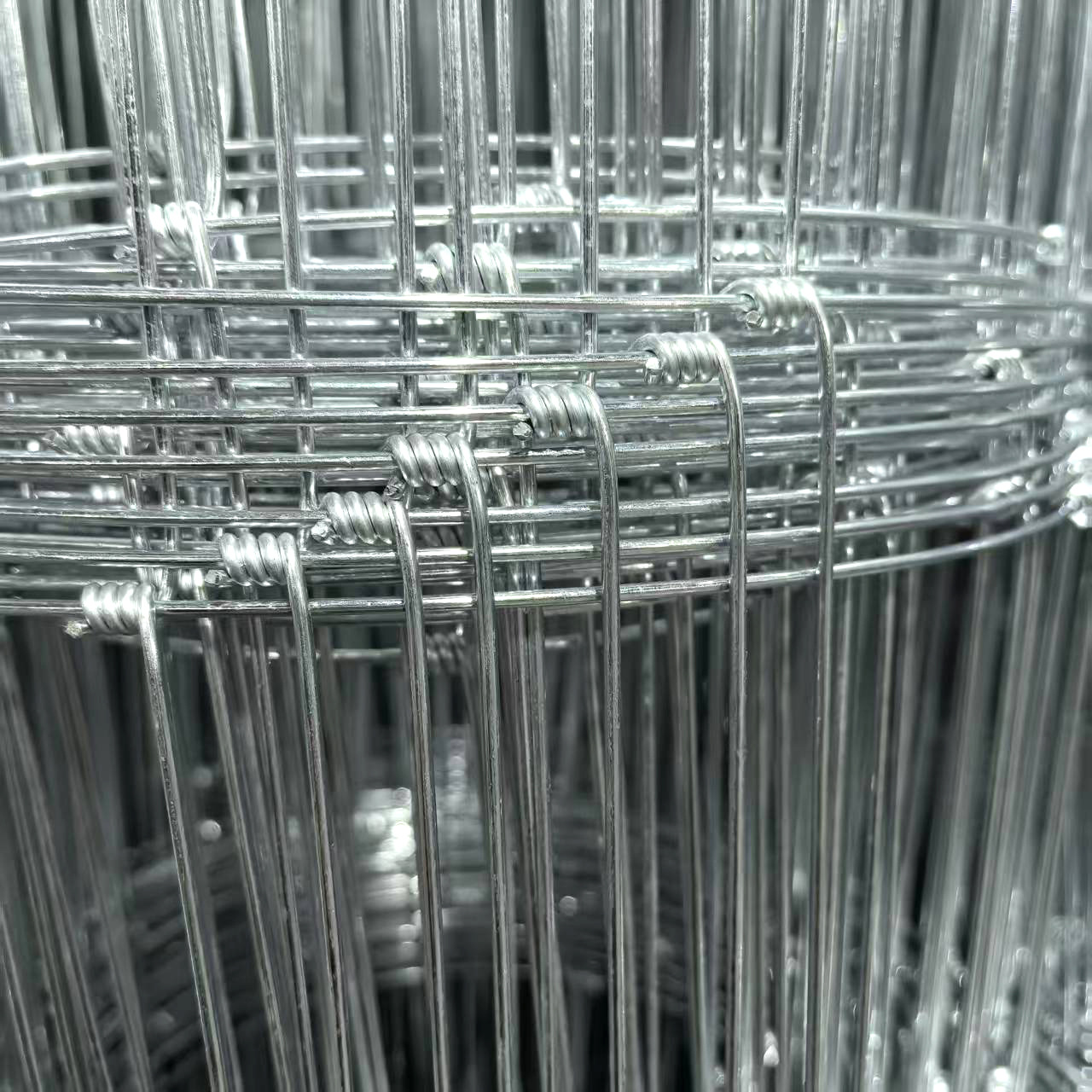

Hinge Joint Fence
The wire wraps around the vertical (stay) wire, creating a flexible, springy joint that absorbs impact and springs back.
- Best for cattle, sheep, mixed livestock
- Ideal for hilly / undulating country
- General-purpose rural fencing

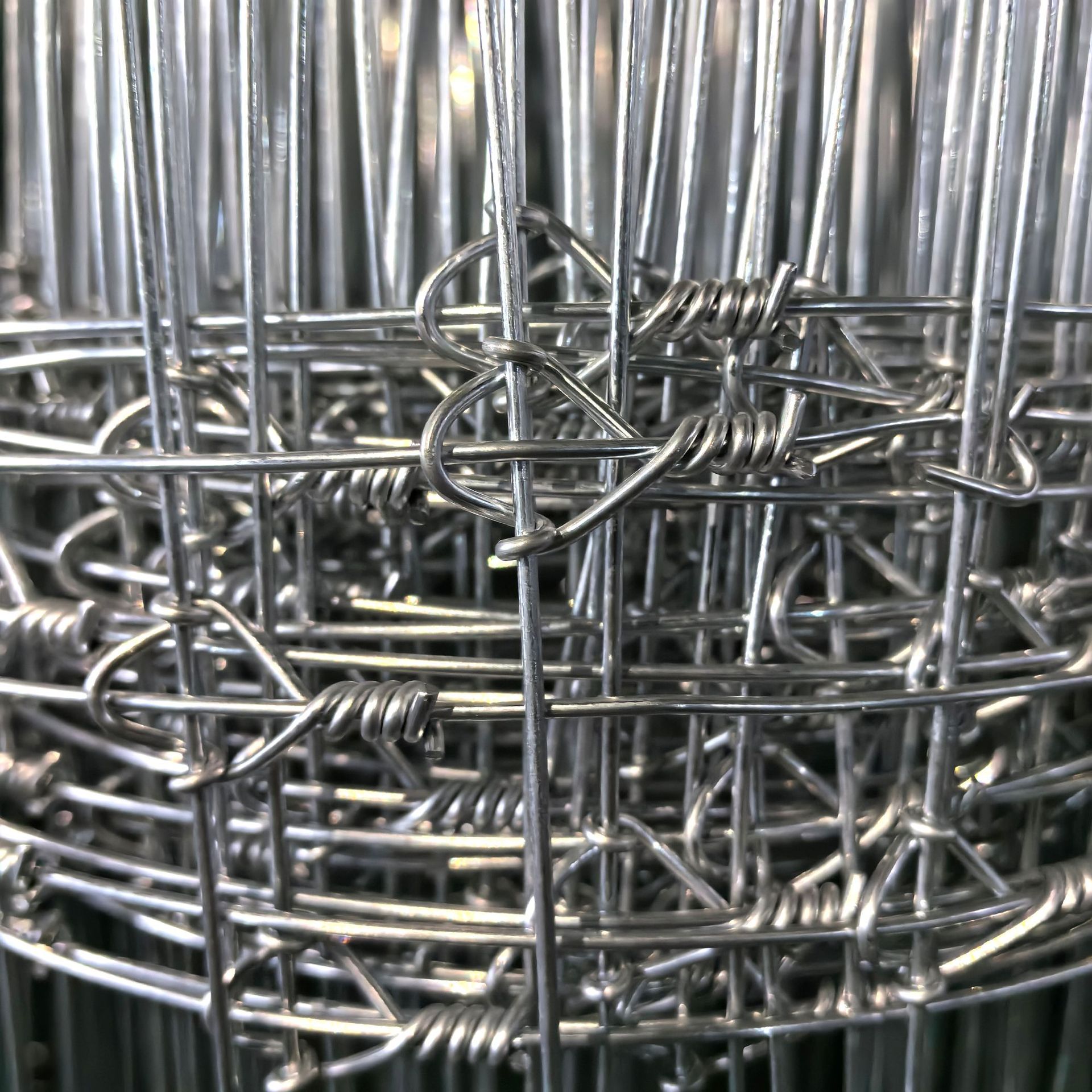

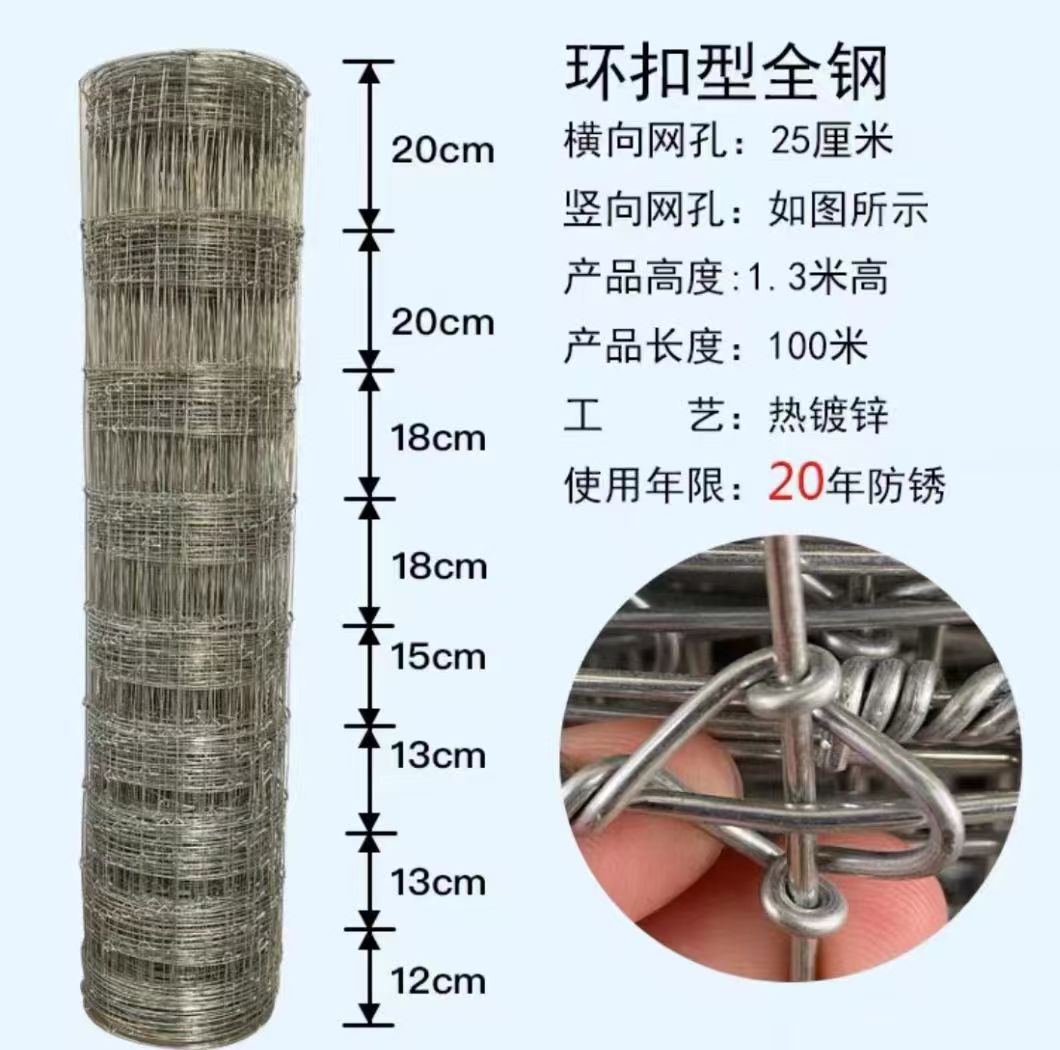

Ring Lock Fence
Horizontal wires are crimped and locked to verticals with a separate ring knot — holds its shape firmly under heavy, sustained pressure.
- Best for high-pressure stock & exclusion fencing
- Ideal for flatter terrain / straight runs
- Boundary & deer / kangaroo exclusion
Side-by-Side Comparison
| Hinge Joint | Ring Lock | |
|---|---|---|
| Joint type | Hinged (wraps around vertical) | Crimped + ring knot |
| Flexibility | High — springs back after impact | Lower — holds shape firmly |
| Terrain | Hilly / undulating | Flatter / straight runs |
| Typical use | General livestock | High-pressure & exclusion |
| Strain handling | Absorbs shock | Resists deformation |
Technical Specifications
| Parameter | Value |
|---|---|
| Material | High tensile galvanized steel wire |
| Wire Diameter | TBC mm (line) / TBC mm (stay) |
| Height | 900 / 1200 / 1500 / 1800 mm |
| Line Wires | 6 / 8 / 10 / 11 lines |
| Vertical Spacing | 150 / 200 / 300 / 400 mm |
| Zinc Coating | 40 / 60 / 100 / 200 g/m² (hot-dip galvanised) |
| Roll Length | 50 / 100 m (custom available) |
| Packing | Plastic film + pallet |
| MOQ | 1×20GP / 1×40HQ (trial order accepted) |
AU/NZ designation example: 8/90/30 = 8 line wires · 90 cm height · 30 cm stay spacing
Quality Assurance
Testing & Inspection Data
Every batch is tested for zinc coating, wire diameter and tensile strength. Test reports available on request.
40–200
g/m² Zinc Coating
Hot-dipped galvanized per batch test
±0.05
mm Wire Diameter Tolerance
Micrometer check on every coil
750–900
MPa Tensile Strength
High tensile wire, tested per lot
AS/NZS
Standards Compliant
AS specs available on request
Applications
Where It Works
Cattle & Sheep Farms
Hinge-joint knot absorbs animal impact without breaking. Ideal for livestock paddocks and rotational grazing.
Rural Boundaries
Clear property lines with a fence that handles Australian weather — UV, rain, wind and temperature swings.
Vineyards & Orchards
Keeps wildlife out while maintaining an open, clean look. Available in low-profile heights for vine protection.
Installation Guide
How to Install Field Fence
Set Corner & End Posts
Install heavy-duty end posts (≥100 mm diameter) at corners and terminations. Brace each end post with a diagonal stay and horizontal rail for tension resistance.
Drive Line Posts
Space intermediate Y posts or timber posts at 3–5 m intervals. Drive to a uniform depth (typically 600 mm) using a post driver.
Unroll & Tie Off
Unroll the field fence along the fence line starting from an end post. Tie the first line wire to the end post with hog rings or tie wire at every horizontal wire.
Tension & Secure
Use a wire strainer or come-along to tension the fence evenly. Attach to line posts with staples or clips. Avoid over-tensioning — the hinge joint needs room to flex.
Pro Tip
For uneven terrain, follow the ground contour rather than stretching the fence level. The hinge-joint design naturally absorbs undulation without losing tension.
Matching Accessories
Recommended for a Complete Setup
Field fence works best with the right posts and tensioning. Here's what we recommend bundling.
Y Post / Star Picket
Standard line post for field fence. Available in 1.58 / 1.86 / 2.04 kg/m, lengths from 0.45 to 2.4 m.
View Y Post →Tension Wire / Barbed Wire
Top and bottom tension wire for added rigidity, or barbed wire topper for livestock deterrence.
View Barbed Wire →Hog Rings & Tie Wire
Galvanized hog rings and tie wire for attaching field fence to posts quickly and securely.
Ask for Pricing →Reference Price
