Chain Link Fence (Diamond Mesh)
Versatile galvanized or PVC-coated chain link fence for security perimeters, sports grounds, industrial sites and boundary fencing. Available in any height and roll length.
At a glance
- ✓Galvanized or PVC-coated chain link (diamond mesh) fence
- ✓For security, sports, industrial and boundary fencing
- ✓Custom mesh opening, wire diameter, height and roll length
- ✓Hot-dip galvanized for corrosion resistance; PVC adds color for coastal environments
- ✓FOB Tianjin · LCL accepted · lead time 2–4 weeks
- ✓Samples available before bulk order
Specifications
Technical Data Sheet
| Parameter | Value |
|---|---|
| Material | Galvanized / PVC coated steel wire |
| Wire Diameter | 2.0 / 2.5 / 3.0 / 4.0 mm (2.5 mm ≈ 12.5 ga) |
| Mesh Opening | 50 mm (2") diamond / 60 mm (2.4") diamond |
| Height | 1.0 / 1.5 / 1.8 / 2.0 / 2.4 / 3.0 m |
| Roll Length | 10 / 15 / 20 / 25 m (custom available) |
| Surface Treatment | Electro galvanized / Hot-dipped galvanized / PVC coated |
| Zinc Coating | Regular (40 g/m²) / Heavy (200 g/m² on 2.0 mm, 230 g/m² on 2.5 mm) — HDG; custom grades on request |
| PVC Thickness | 0.5 / 0.8 / 1.0 mm |
| Color | Green / Black / Custom RAL |
| Selvage | Twisted / Knuckled / Barbed top |
| Tensile Strength | 350–500 MPa |
| Packing | Plastic film + pallet / woven bag |
| MOQ | 1×20GP / trial order accepted |
Quality Assurance
Testing & Inspection Data
Every batch is checked for wire diameter, zinc coating, mesh opening and tensile strength. Confirm your required specification in your inquiry and we will quote and produce to match.
40–230
g/m² Zinc Coating
Hot-dip galvanized regular / heavy grades
±0.05
mm Wire Diameter Tolerance
Micrometer check on every coil
±2
mm Mesh Opening Tolerance
Calibrated jig measurement
350–500
MPa Tensile Strength
Tensile test per lot
AS 1725 / AS 2423
Chain-Link Fabric Fencing
Chain-link fabric available to AS 1725 / AS 2423 specifications on request.
Applications
Where It Works
Security Perimeters
Industrial sites, warehouses, factories and compounds. PVC-coated option adds corrosion resistance and a clean look.

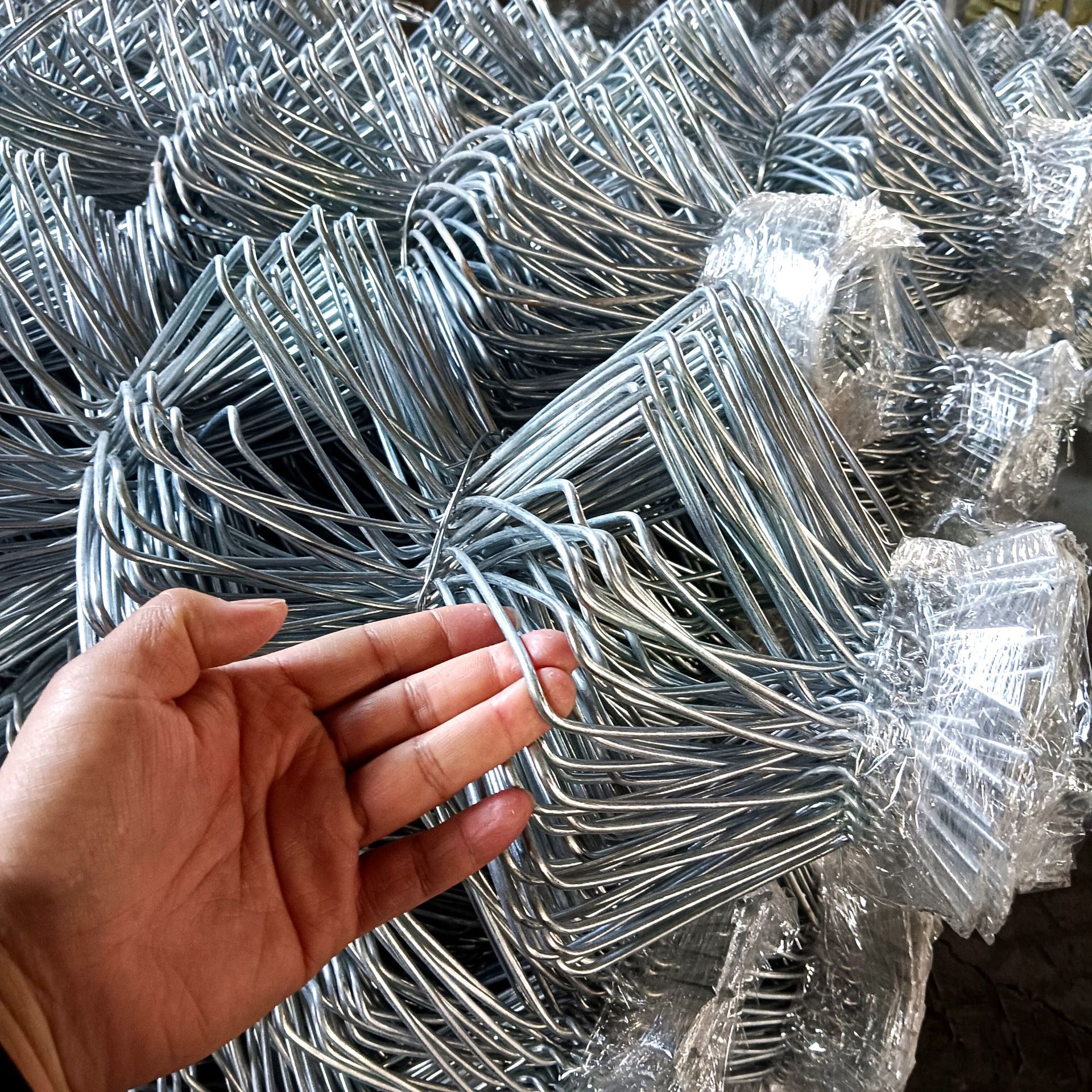

Sports & Recreation
Tennis courts, cricket nets, school yards and public parks. Knuckled edges for player safety.

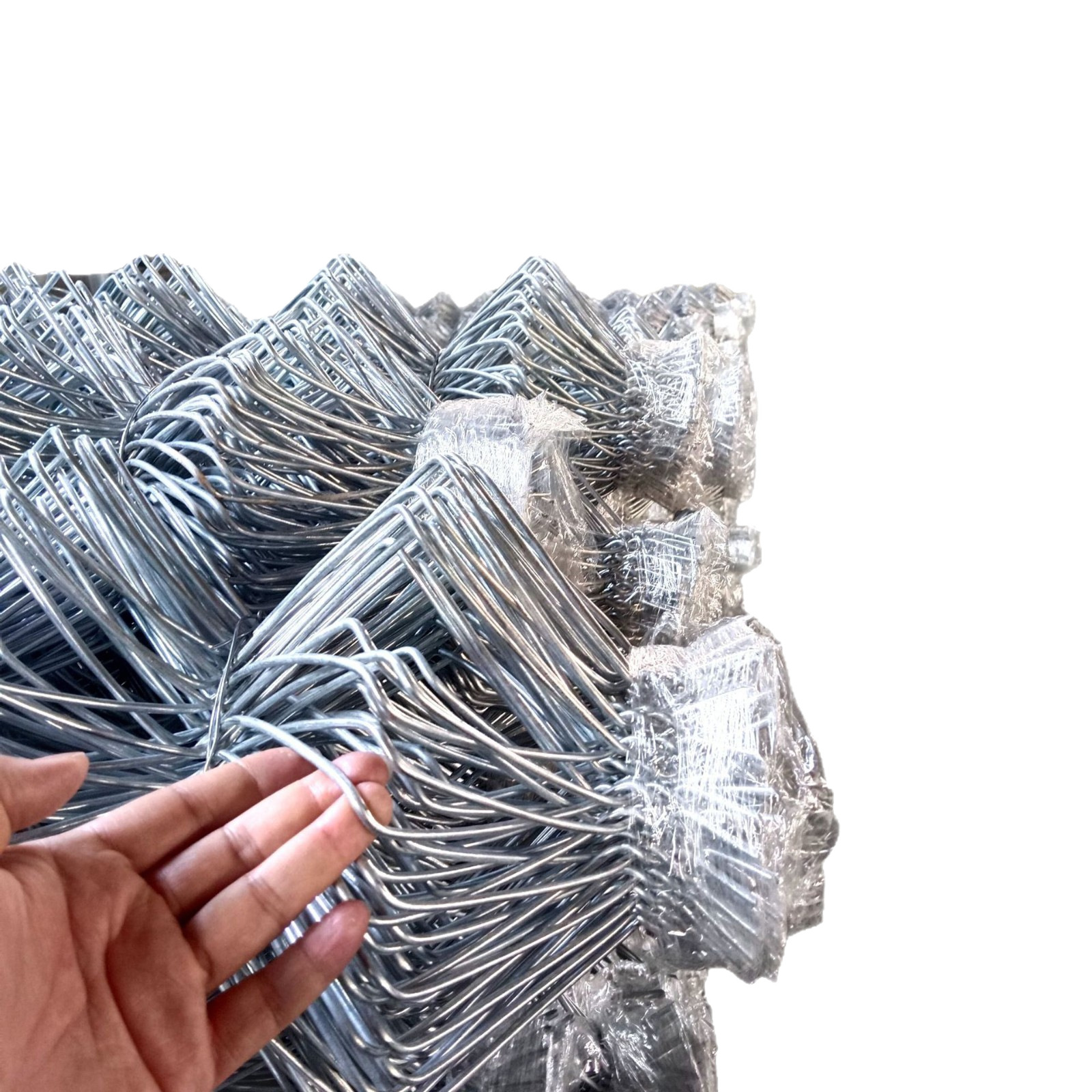

Boundary & Yard Fencing
Residential yards, garden enclosures, dog runs and pool fencing. Quick to install, easy to maintain.
Installation Guide
How to Install Chain Link Fence
Layout & Set Posts
Mark the fence line. Install terminal (end/corner) posts first — dig to 1/3 of post height, set in concrete. Then add line posts at 2.5–3 m intervals.
Install Rails & Tension Wire
Attach top rail or tension wire between terminal posts. Add bottom tension wire along the ground line for stability.
Stretch & Hang the Mesh
Unroll chain link along the fence line. Use a come-along and stretcher bar to tension the mesh evenly. Tie to top rail and line posts with wire ties every 300–400 mm.
Secure & Finish
Fasten mesh to terminal posts with tension bands. Trim excess wire. Install caps on all post tops. For barbed top selvage, angle outward for added security.
Pro Tip
Always stretch chain link mesh from the bottom up — this prevents the diamond pattern from distorting. For slopes, step the mesh in sections rather than racking it.
Matching Accessories
Recommended for a Complete Setup
Chain link fence needs proper posts, tensioning and tie wire. Here's what we recommend bundling.
Steel Posts / Y Posts
Round posts or Y posts for line posts and terminal posts. Galvanized finish, custom lengths.
View Y Post →Tension Wire & Tie Wire
Top/bottom tension wire for rigidity, and galvanized tie wire to secure mesh to posts every 300 mm.
Ask for Pricing →Clamps & Fittings
Tension bands, brace bands, post caps, gate hinges and all the fittings you need for a clean install.
Ask for Pricing →Reference Price
Factory Direct — Ex Works
Prices shown are indicative reference prices only and are not the final transaction prices. Actual pricing is subject to change based on raw material costs, international market conditions, exchange rate fluctuations, shipping and freight costs, order quantity, product specifications, and packaging and delivery requirements.
Submit an inquiry and our sales team will calculate a tailored quote for you; the final price will be confirmed in our official quotation only.
